Walking the Full Transfer State Machine: Happy Path, a Sandbox Surprise, and a Refund

Table of contents

Earlier in this series, I reconciled specific pieces of Wise Platform’s documented behavior against the sandbox – quote expiry, rate expiry, idempotency, a fee mystery. Those were narrow, single-variable experiments. This post is different: it’s one continuous run through the actual transfer state machine, from creation all the way to a terminal state, using the Wise sandbox UI, Postman, and a live webhook subscription together. It also includes something I didn’t plan for: the sandbox itself changed the outcome mid-test, which turned out to be more interesting than the happy path I’d set out to document.

Environment: Wise Platform API, Sandbox V2 (https://api.wise-sandbox.com), sandbox UI at wise-sandbox.com Flow: SGD → GBP, personal profile, BANK_TRANSFER payOut Profile: 29263618 (“Giovanny Ramirez”, personal – KYC cleared; the business profile 29263621 on this account has unresolved KYC and returns 404 on GET /v3/profiles/{id}/kyc-reviews, so all testing here uses the personal profile)

What I set out to test vs. what actually happened

The documented happy path for a Wise transfer is:

incoming_payment_waiting → processing → funds_converted → outgoing_payment_sent

I got three steps into it, then the sandbox auto-advanced the transfer to bounced_back on its own, mid-test, while I was setting up a webhook subscription. That’s not a state in the documented happy path at all – it’s part of the unhappy path. Rather than treat that as a failed test, I followed it through to see where it led, which meant I ended up validating both directions in a single run:

incoming_payment_waiting → processing → funds_converted → [sandbox auto-advance] → bounced_back → funds_refunded

Setup: profile, quote, recipient

Collection variables

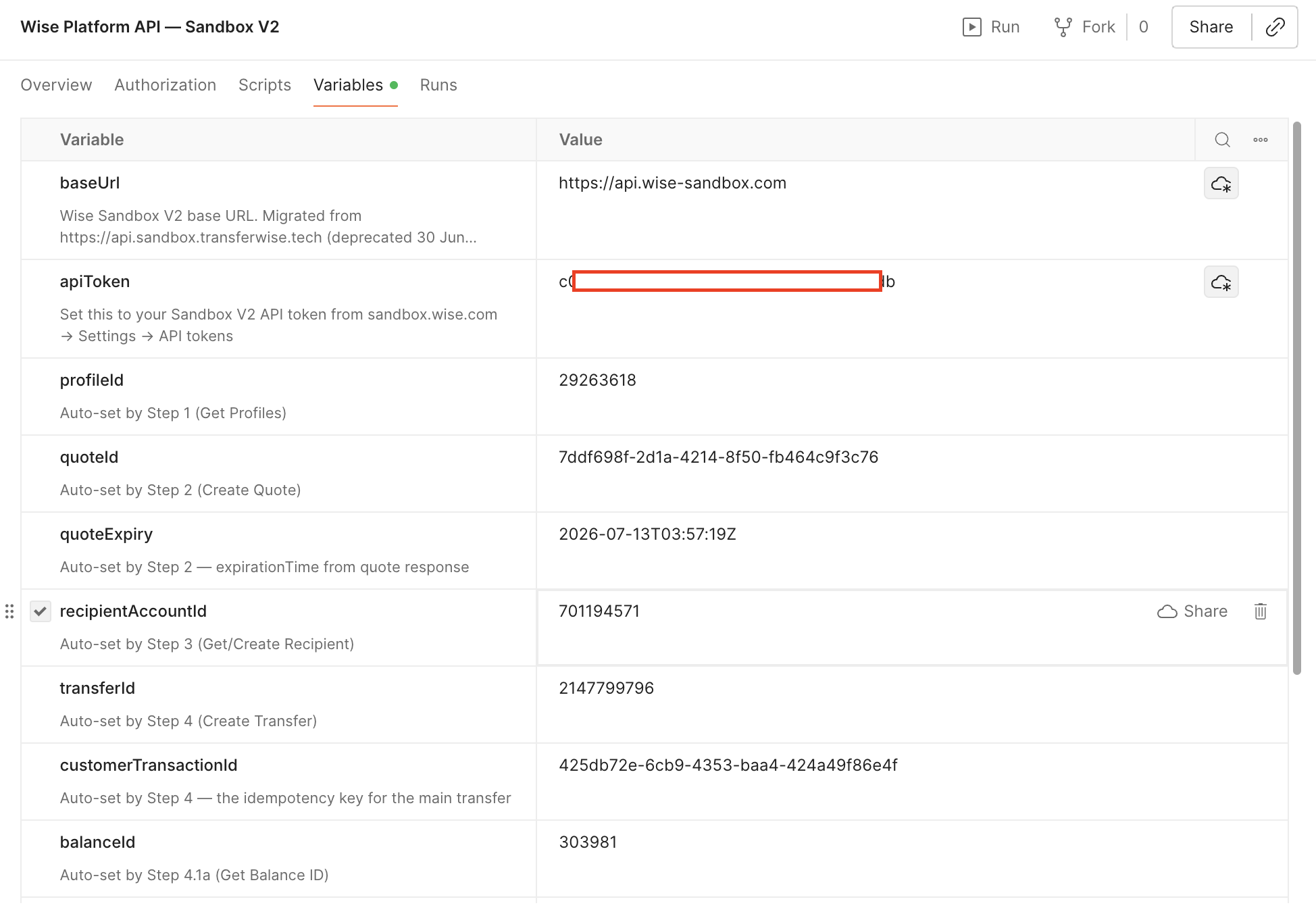

Postman collection variables

Variable Value Set by
baseUrl https://api.wise-sandbox.com Collection default (V2)
profileId 29263618 Step 1 – Get Profiles
quoteId 7ddf698f-2d1a-4214-8f50-fb464c9f3c76 Step 2 – Create Quote
quoteExpiry 2026-07-13T03:57:19Z Step 2 – expirationTime
recipientAccountId 701194571 Step 3 – List Recipients
transferId 2147799796 Step 4 – Create Transfer
customerTransactionId 425db72e-6cb9-4353-baa4-424a49f86e4f Step 4 – idempotency key
balanceId 303981 Step 4.1a – Get Balance ID

Profile

GET /v1/profiles

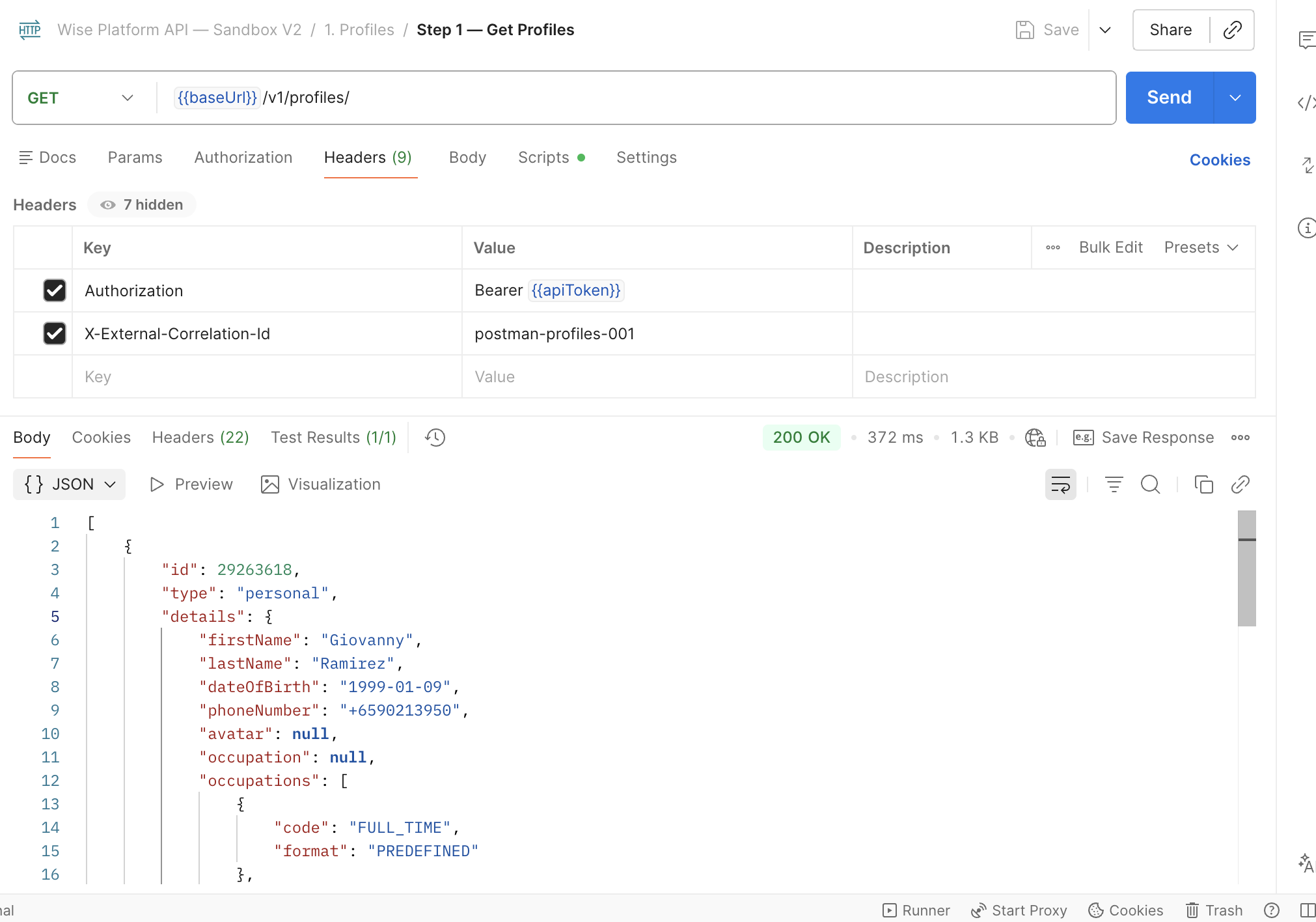

Postman: Get Profiles

{
  "id": 29263618,
  "type": "personal"
}

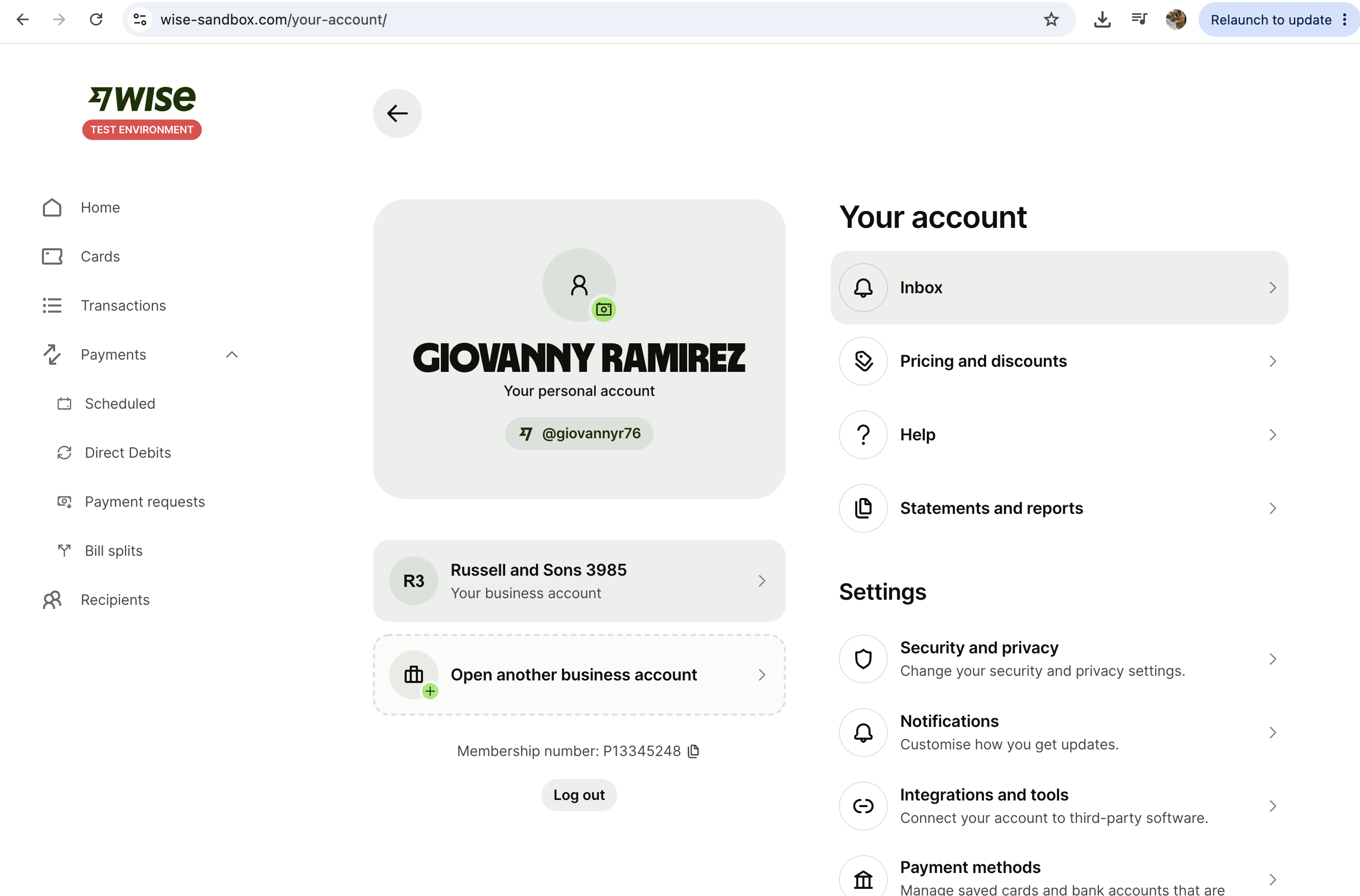

Cross-checked against the sandbox console – same personal account, “Giovanny Ramirez”:

Sandbox UI: personal profile

Quote

POST /v3/profiles/29263618/quotes

{
  "sourceCurrency": "SGD",
  "targetCurrency": "GBP",
  "sourceAmount": 200,
  "payOut": "BANK_TRANSFER"
}

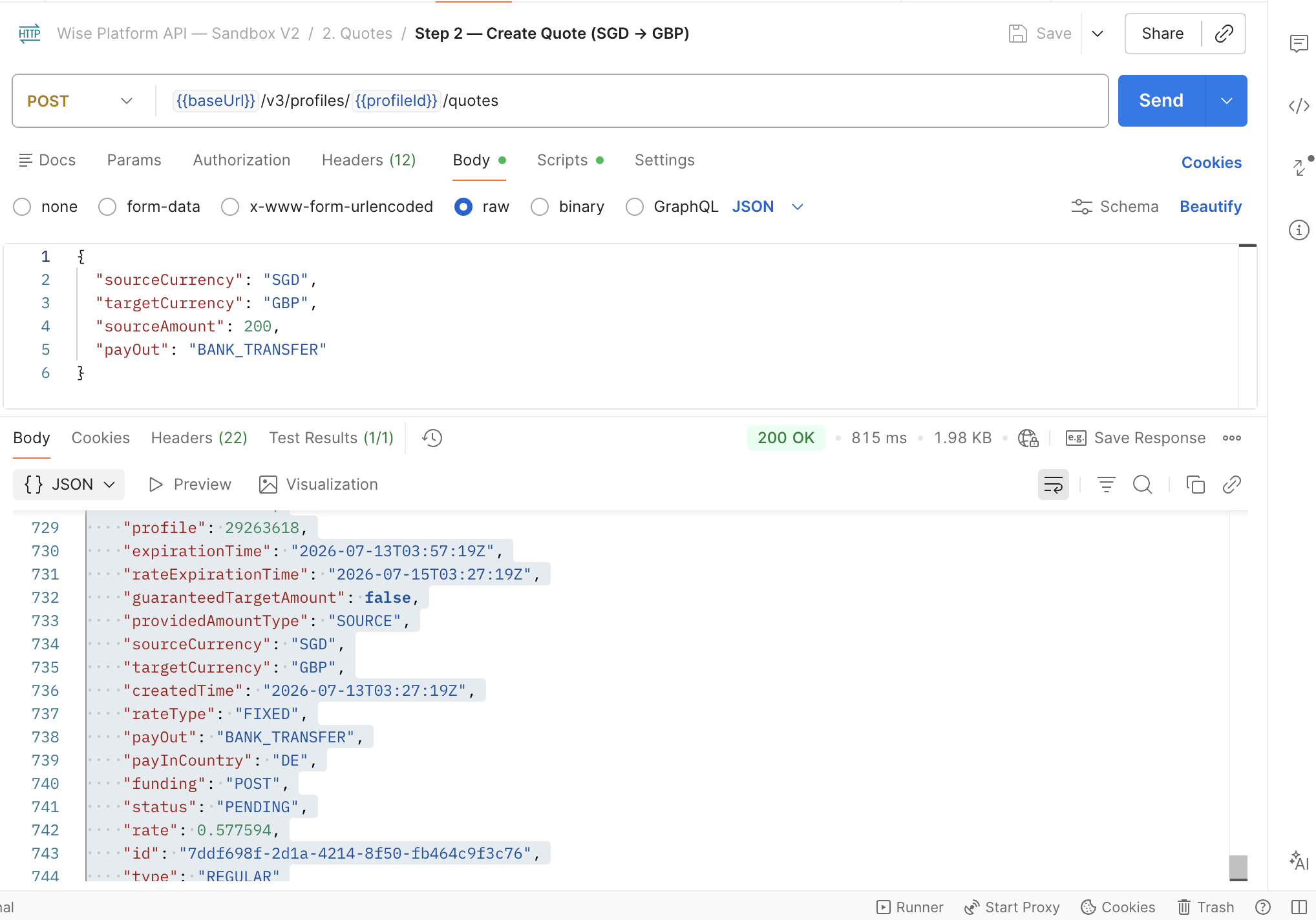

Postman: Create Quote

Field Value
id 7ddf698f-2d1a-4214-8f50-fb464c9f3c76
rate 0.577594
createdTime 2026-07-13T03:27:19Z
expirationTime 2026-07-13T03:57:19Z (30 min)
rateExpirationTime 2026-07-15T03:27:19Z (4 days)
rateType FIXED

Consistent with what I found in the rate-expiry experiments – expirationTime is exactly 30 minutes after createdTime, rateExpirationTime exactly 4 days after.

Recipient

GET /v1/accounts?profile=29263618

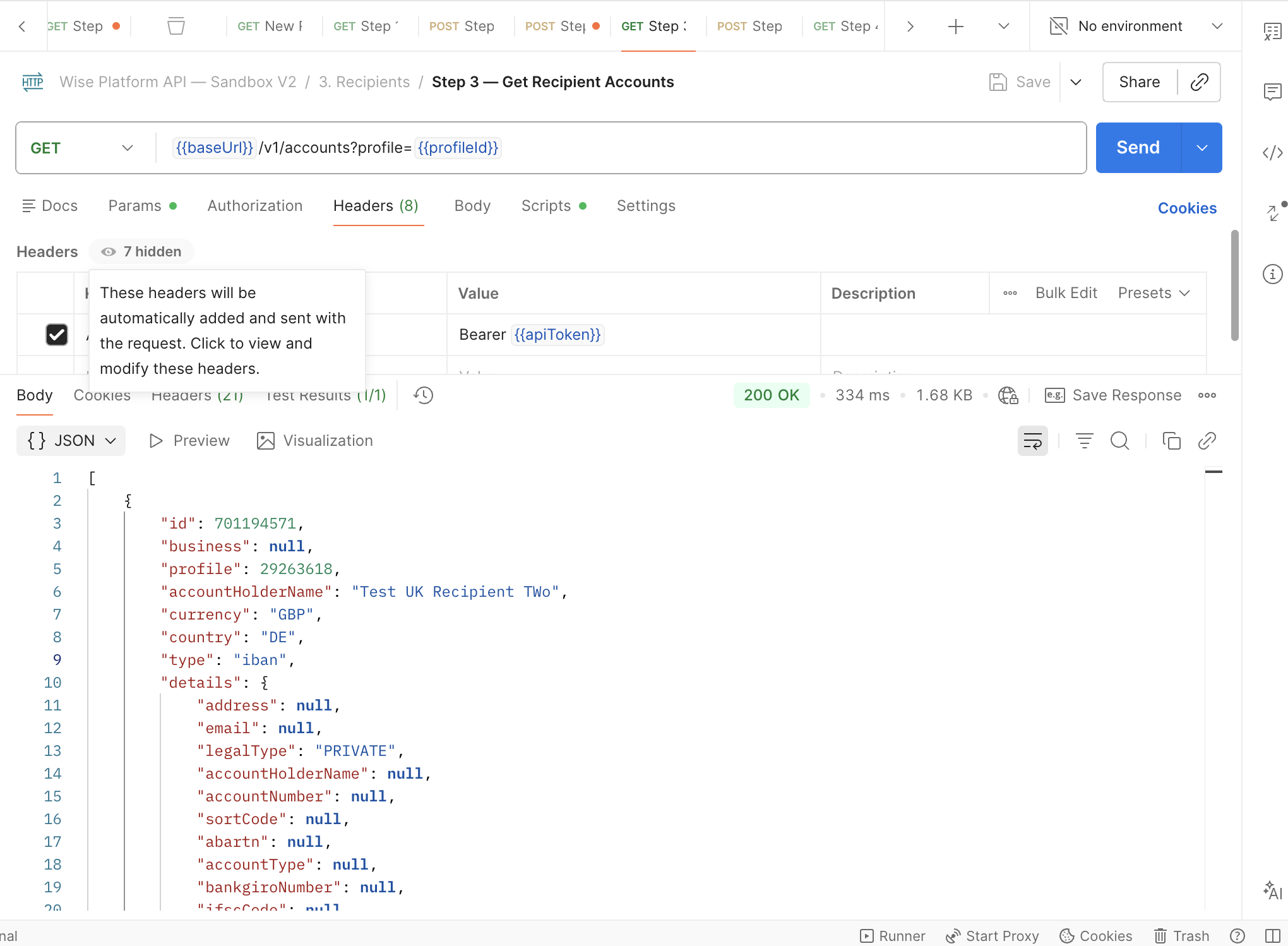

Postman: List recipients

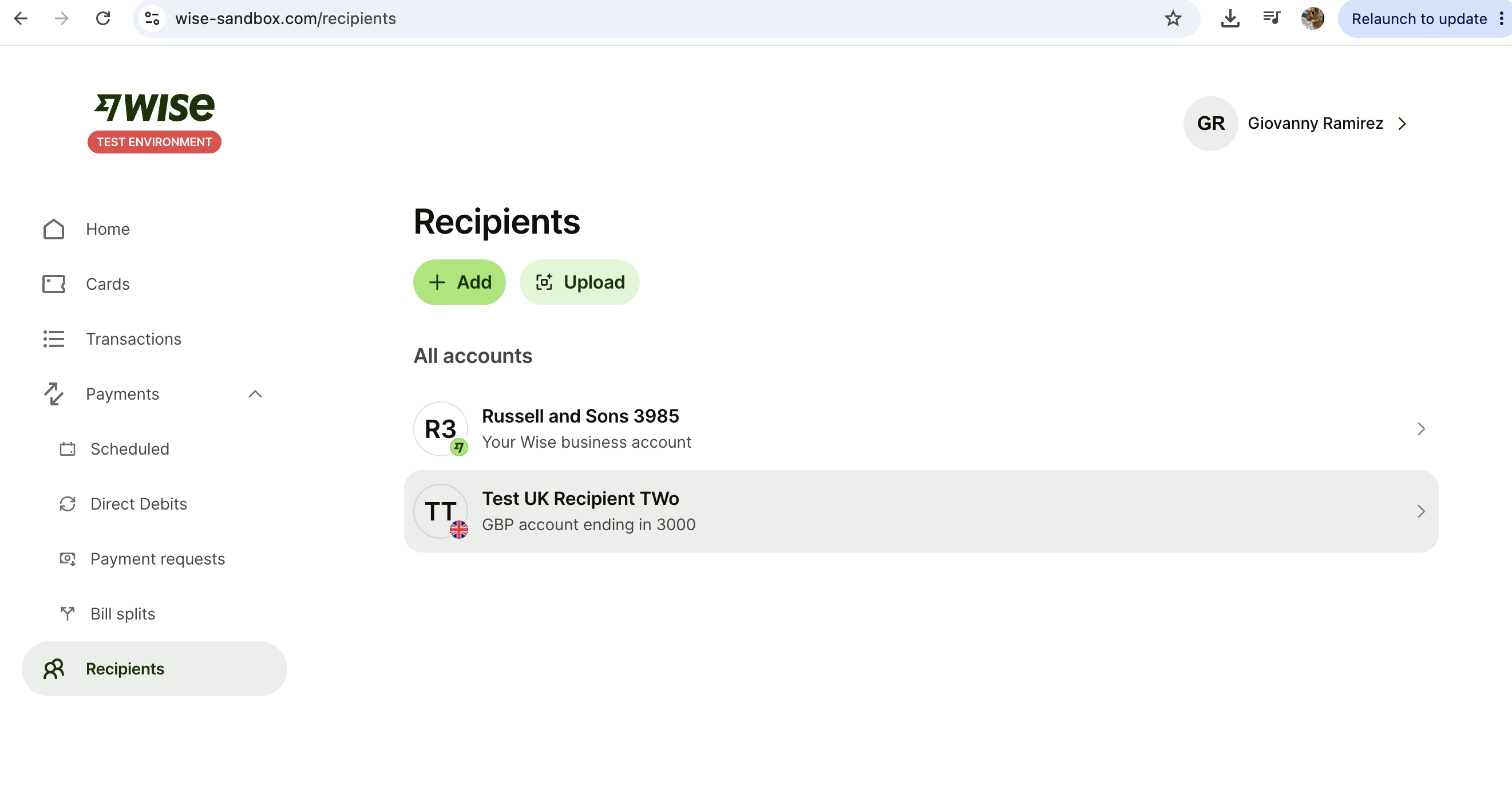

Sandbox UI: recipients list

Field Value
id 701194571
accountHolderName Test UK Recipient TWo
currency GBP
IBAN DE89 3704 0044 0532 0130 00
BIC/SWIFT COBADEFFXXX

Creating the transfer

POST /v1/transfers

{
  "targetAccount": 701194571,
  "quoteUuid": "7ddf698f-2d1a-4214-8f50-fb464c9f3c76",
  "customerTransactionId": "425db72e-6cb9-4353-baa4-424a49f86e4f",
  "details": {
    "reference": "walakaka"
  }
}

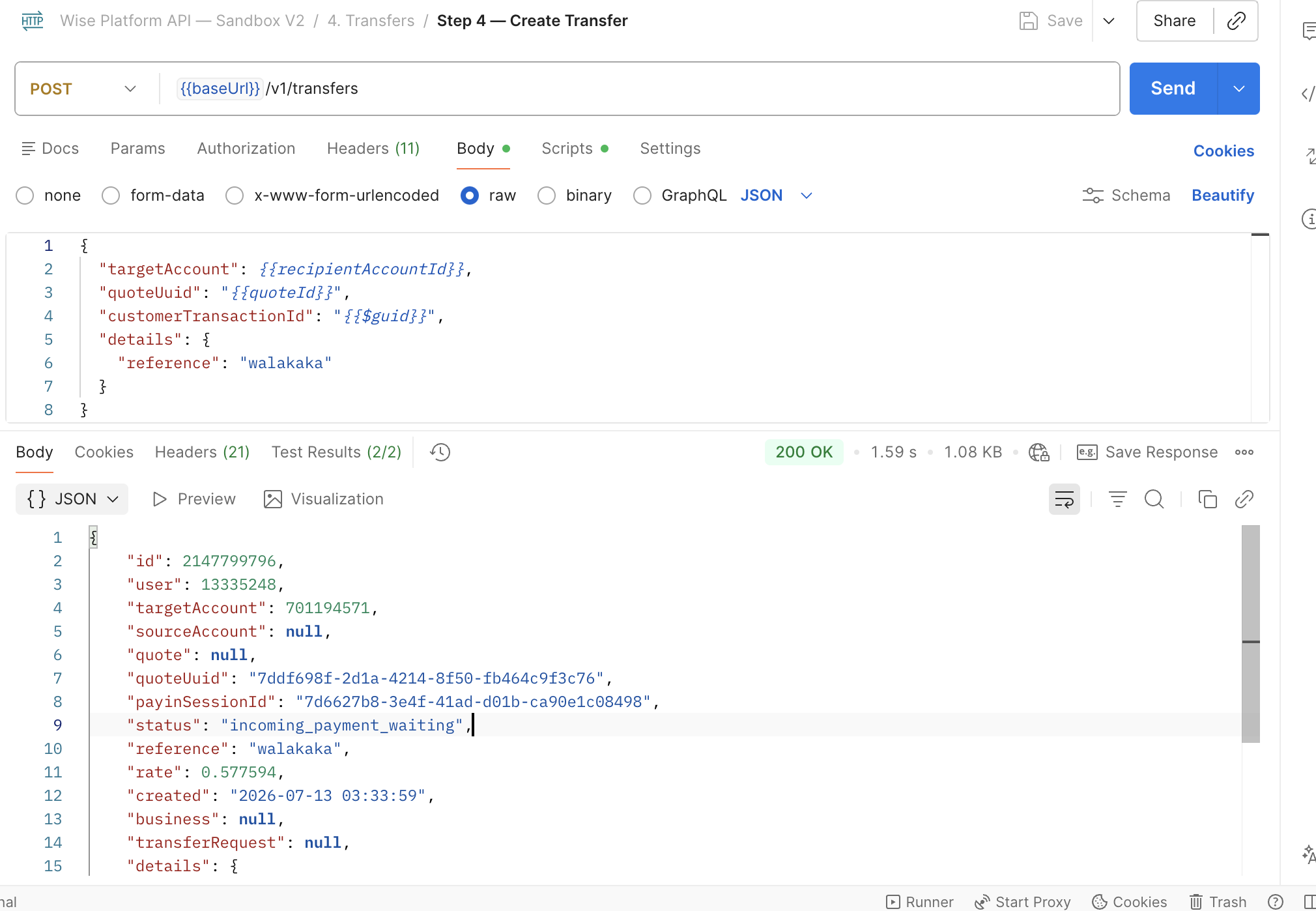

Postman: Create Transfer

{
  "id": 2147799796,
  "quoteUuid": "7ddf698f-2d1a-4214-8f50-fb464c9f3c76",
  "status": "incoming_payment_waiting",
  "rate": 0.577594,
  "sourceCurrency": "SGD",
  "sourceValue": 191.60,
  "targetCurrency": "GBP",
  "targetValue": 110.67,
  "customerTransactionId": "425db72e-6cb9-4353-baa4-424a49f86e4f"
}

The sandbox UI reflects this immediately as “Waiting for you to pay”:

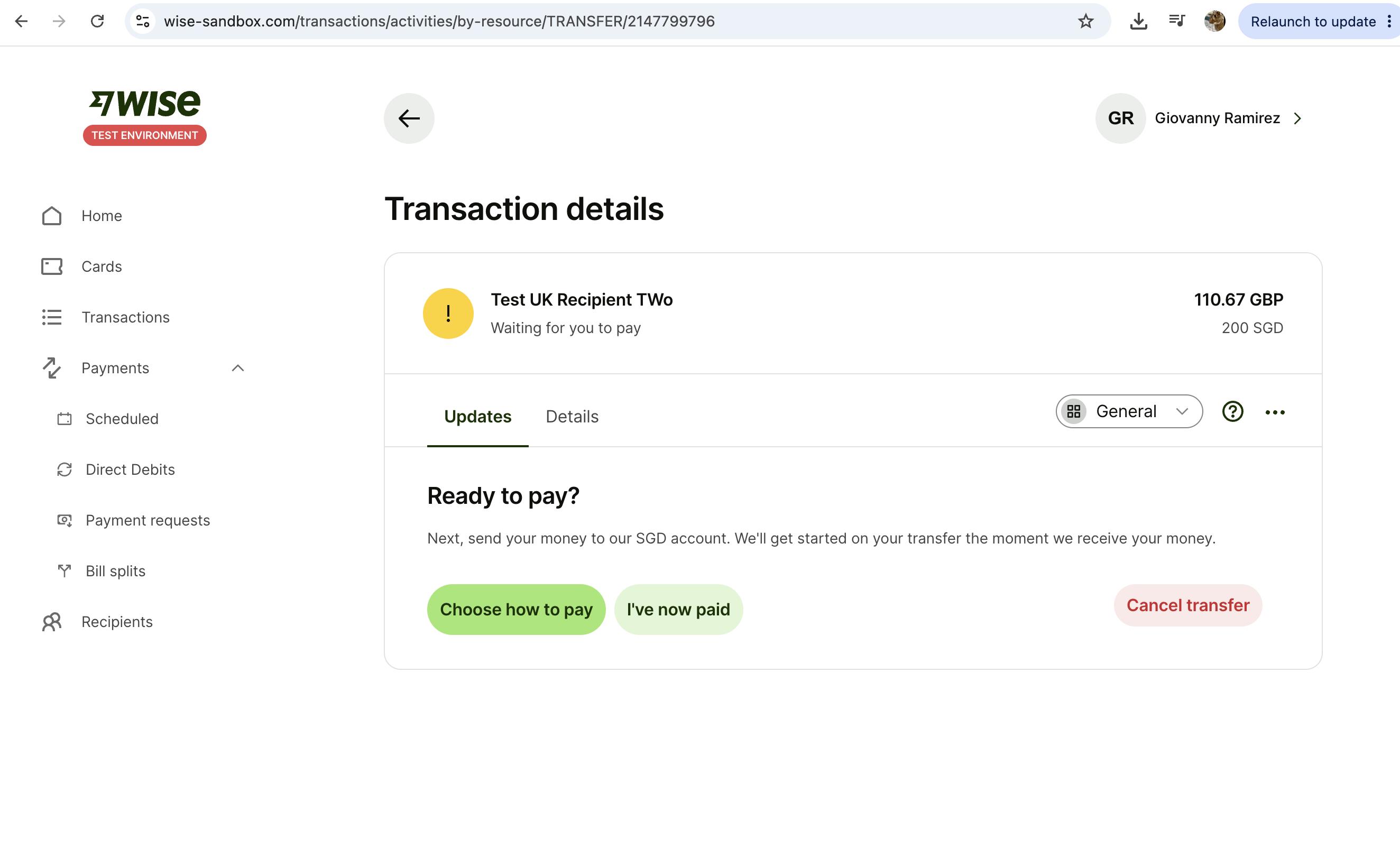

Sandbox UI: incoming_payment_waiting

Watch sourceValue/targetValue here – at creation they’re 191.60/110.67, based on an estimated fee. A few steps down, once funding actually happens, they shift slightly to 191.75/110.75. That’s not a bug – it’s the same pattern I found in the earlier fee investigation, except this time it’s small and fully explained: the estimate assumed an 8.40 SGD fee, and the payment method actually selected at funding time (Your account, 8.25 SGD) finalizes at a slightly different number.

Funding via the sandbox UI

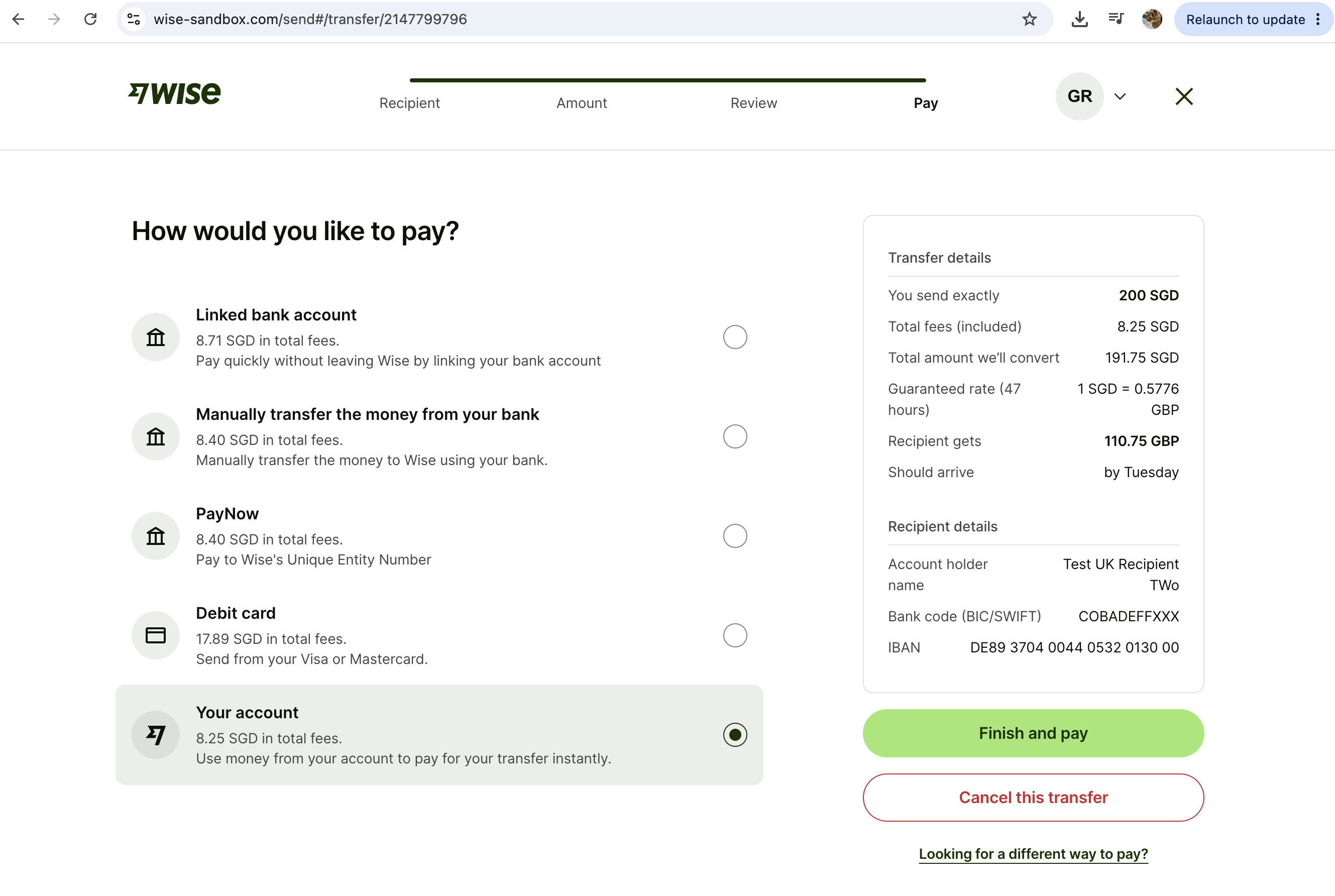

The V2 sandbox’s POST /v3/profiles/{id}/transfers/{id}/payments endpoint returns 403 – a known V2 limitation I ran into in the previous post as well. The workaround is funding through the sandbox UI directly.

Sandbox UI: payment method selection

UI field Value
You send exactly 200 SGD
Total fees (included) 8.25 SGD
Total amount we’ll convert 191.75 SGD
Guaranteed rate 1 SGD = 0.5776 GBP
Recipient gets 110.75 GBP

After clicking “Finish and pay”, the UI moves to “Sending” and shows a guaranteed-rate banner:

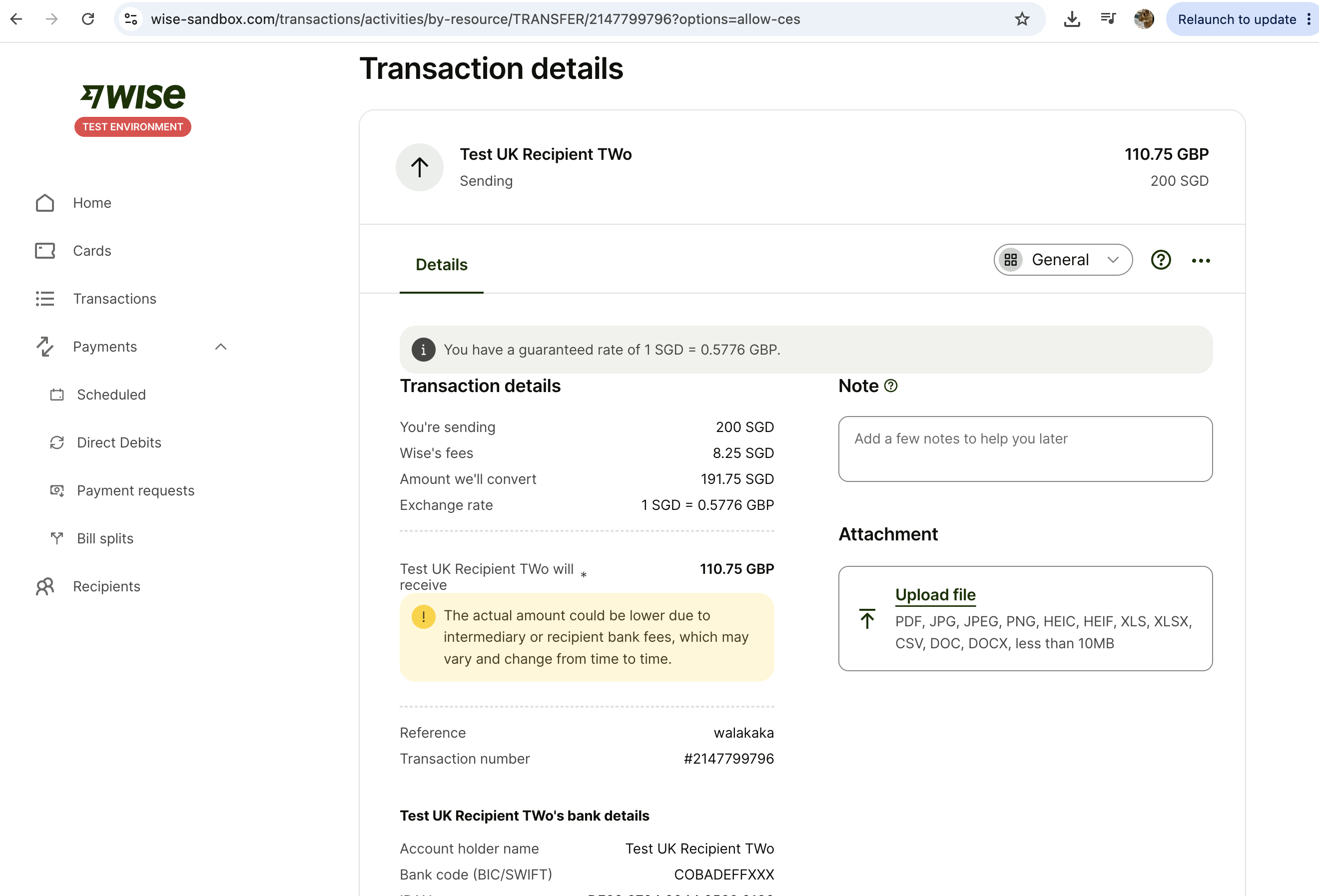

Sandbox UI: Sending state

“You have a guaranteed rate of 1 SGD = 0.5776 GBP.”

Advancing the state machine

processing

GET /v1/simulation/transfers/2147799796/processing

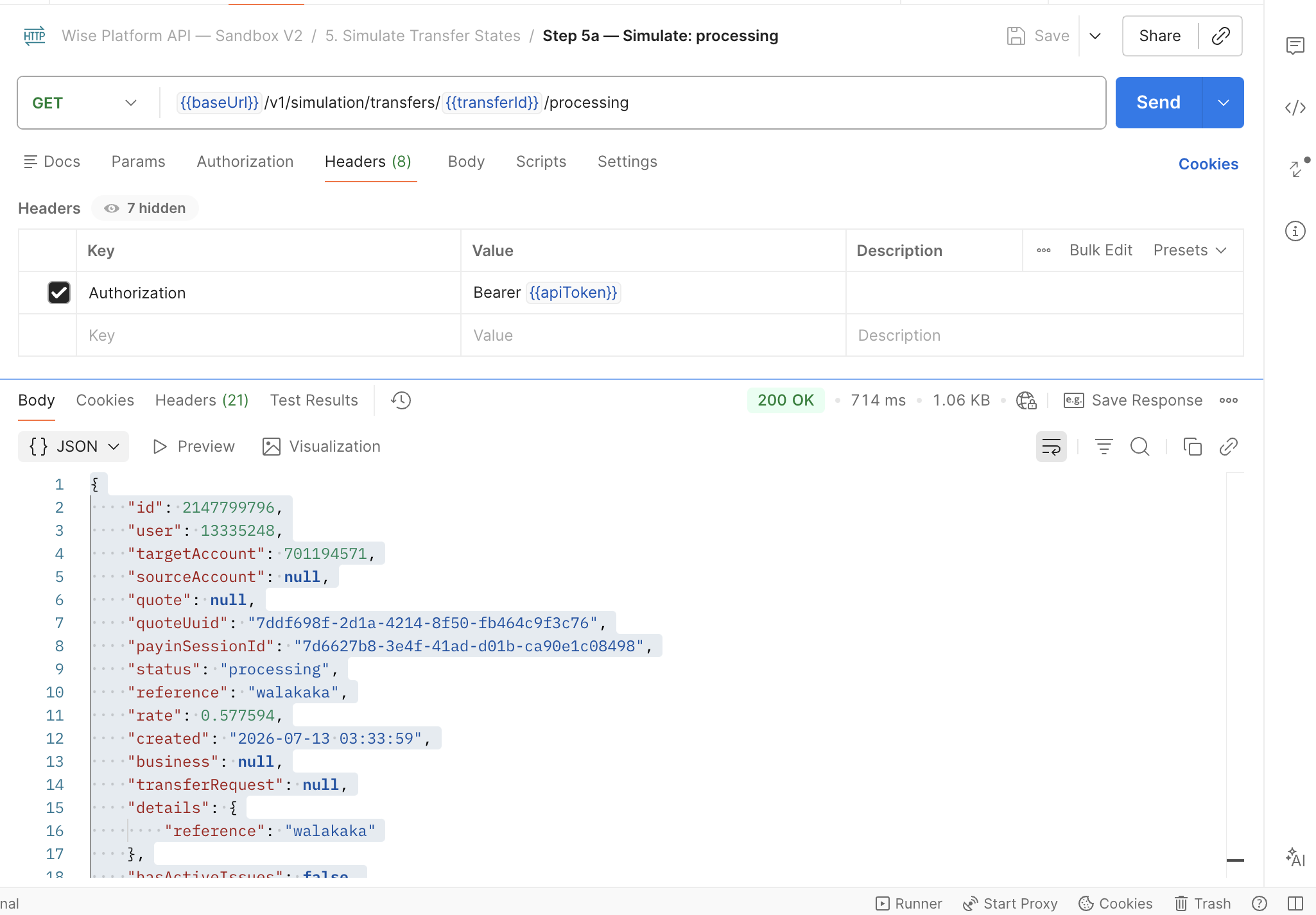

Postman: simulate processing

{
  "id": 2147799796,
  "status": "processing",
  "rate": 0.577594,
  "sourceCurrency": "SGD",
  "sourceValue": 191.75,
  "targetCurrency": "GBP",
  "targetValue": 110.75
}

Calling this advanced the transfer from incoming_payment_waiting straight to processing, and it stayed there – no further auto-advance at this point. Confirmed with a follow-up status check:

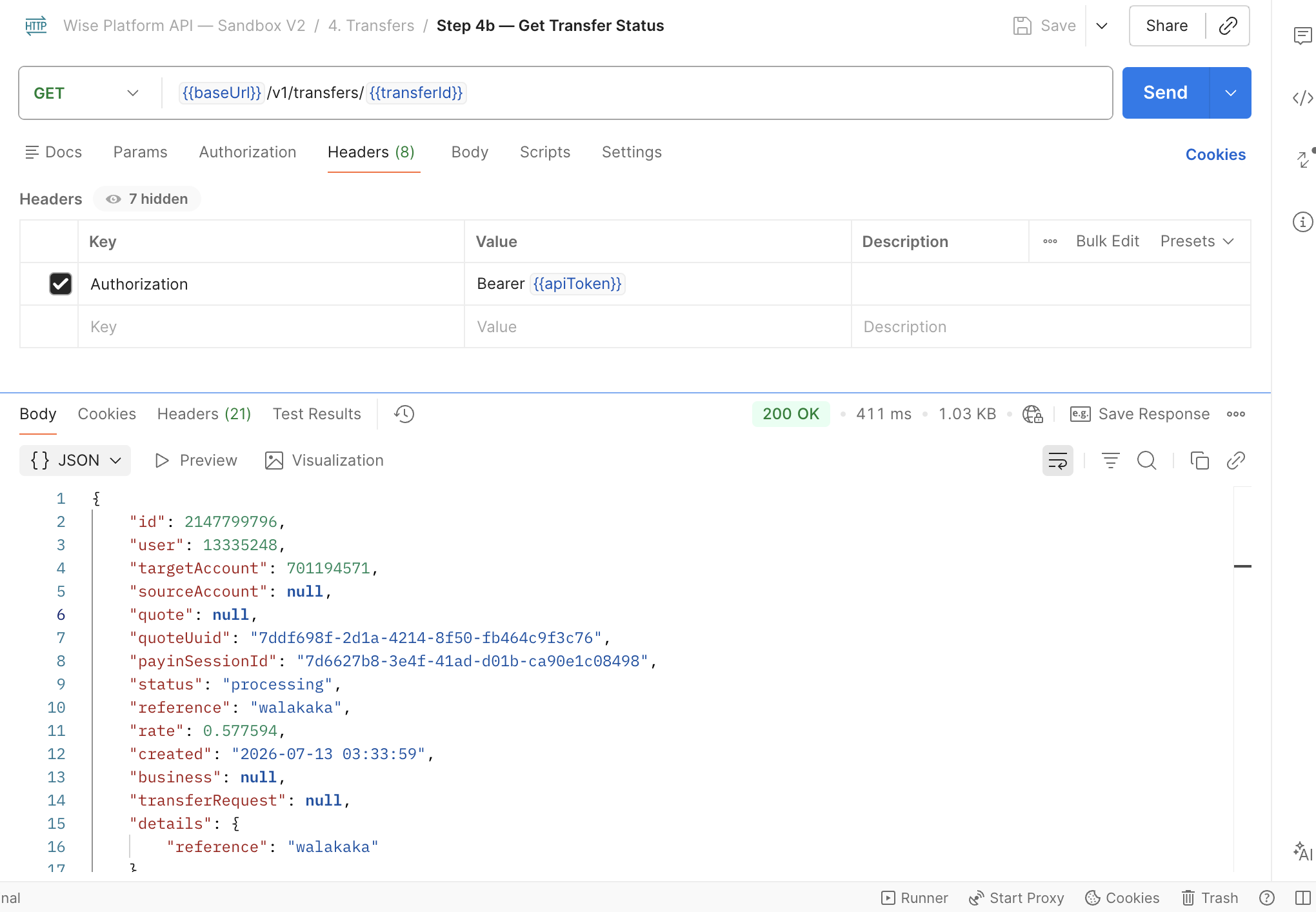

Postman: get status confirming processing

funds_converted

GET /v1/simulation/transfers/2147799796/funds_converted

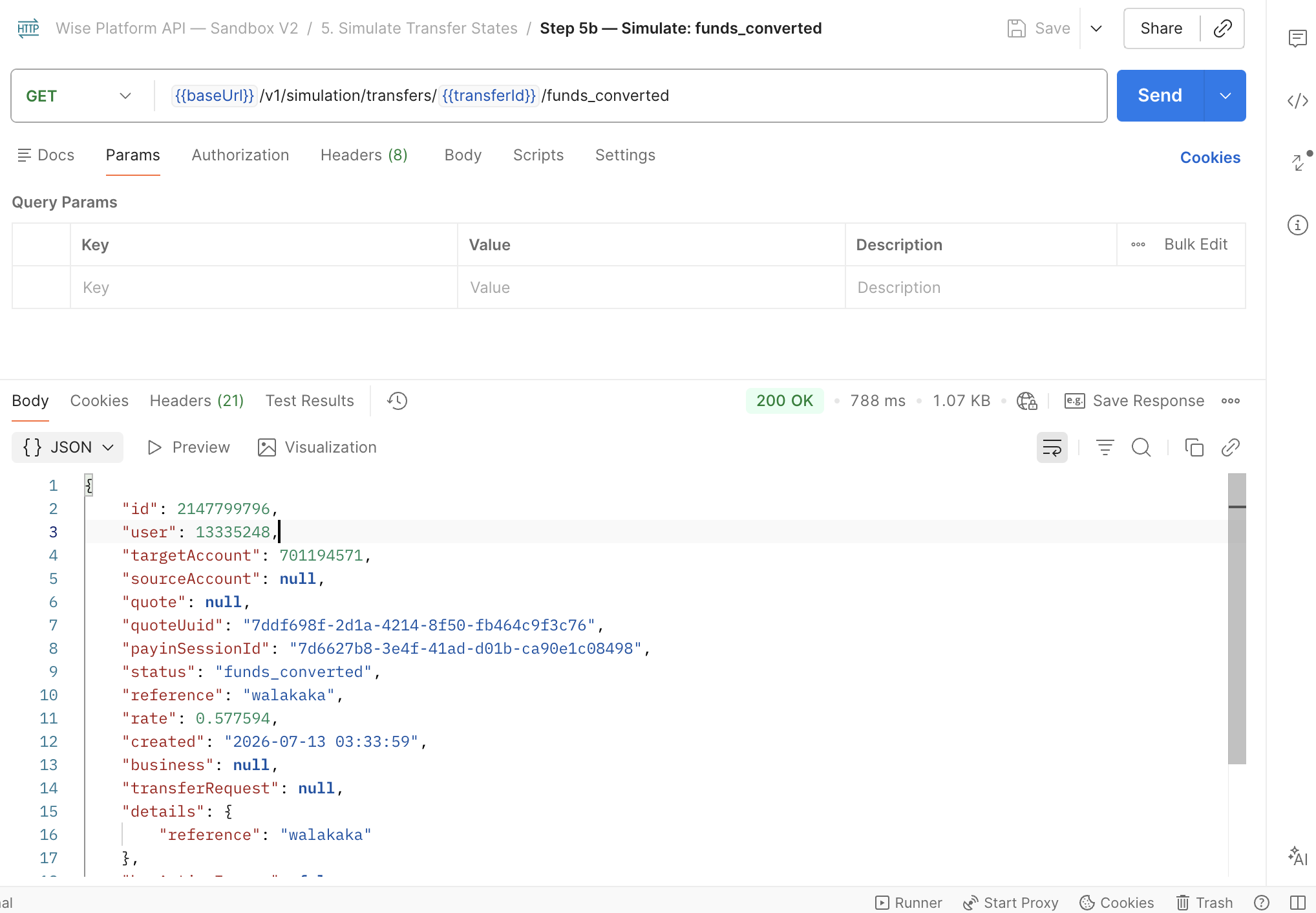

Postman: simulate funds_converted

{
  "id": 2147799796,
  "status": "funds_converted",
  "rate": 0.577594,
  "sourceCurrency": "SGD",
  "sourceValue": 191.75,
  "targetCurrency": "GBP",
  "targetValue": 110.75
}

Three steps into the documented happy path, exactly as expected. This is where things stopped going according to plan.

The sandbox surprise: an uninvited jump to bounced_back

While the transfer sat in funds_converted, I set up a webhook subscription via webhook.site to capture state-change events for the rest of the run. By the time that setup was done, the transfer had moved to bounced_back on its own – no simulation call, no API request, nothing on my end triggered it.

{
  "id": 2147799796,
  "status": "bounced_back",
  "rate": 0.577594,
  "sourceCurrency": "SGD",
  "sourceValue": 191.75,
  "targetCurrency": "GBP",
  "targetValue": 110.75
}

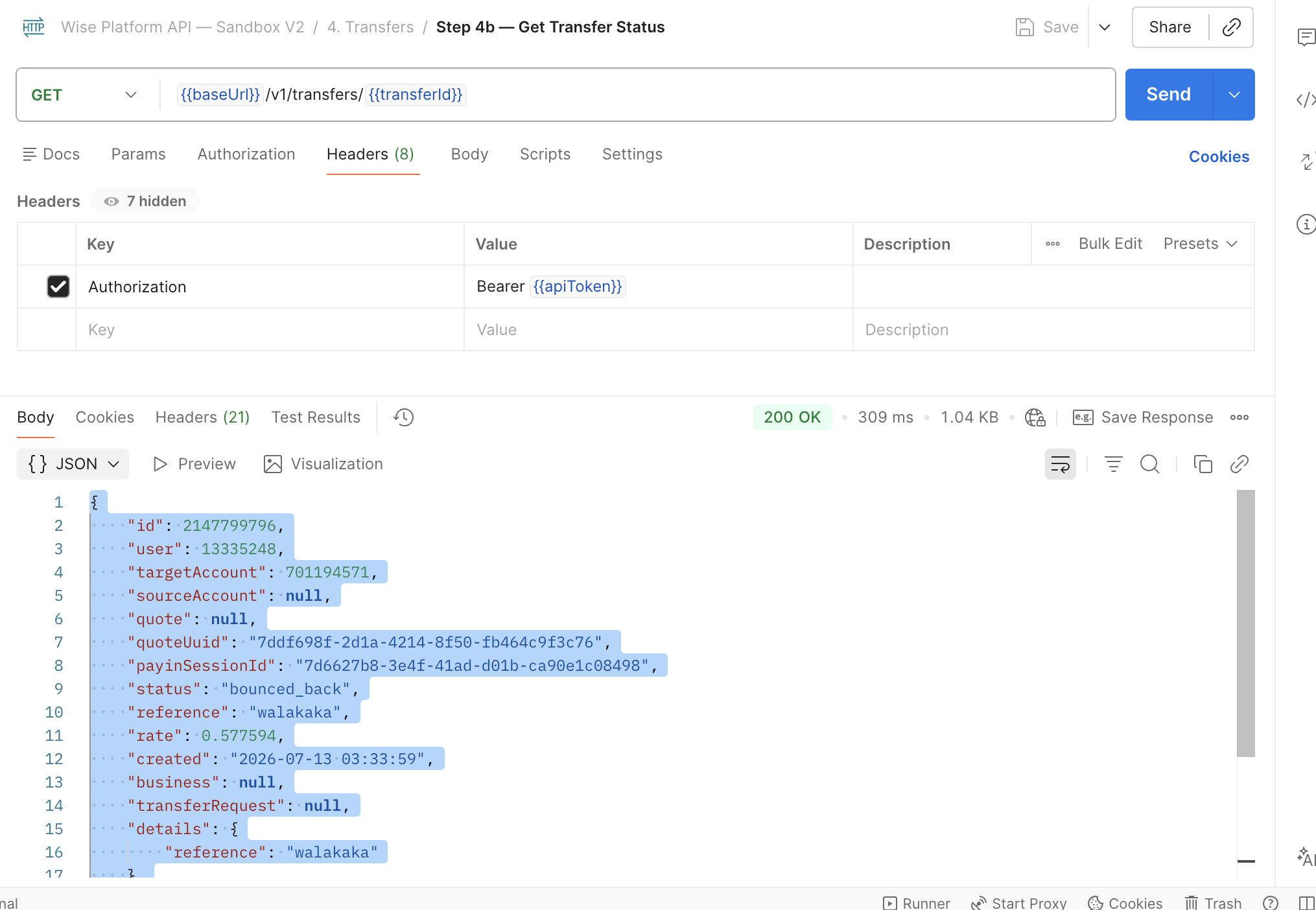

Postman: get status confirming bounced_back

I can’t find this behavior documented anywhere in Wise’s simulation API reference or the transfer statuses guide. My working theory, based purely on observing it happen: the sandbox auto-advances a transfer sitting in funds_converted to bounced_back after some period of inactivity, specifically so testers can exercise the unhappy path without needing partner-level access to trigger it deliberately. I can’t confirm the exact trigger (a fixed timer vs. some other condition), only that it happened during the webhook setup window with zero explicit calls from me.

I tried to continue toward the happy-path terminal state anyway, to see if it was recoverable:

GET /v1/simulation/transfers/2147799796/outgoing_payment_sent

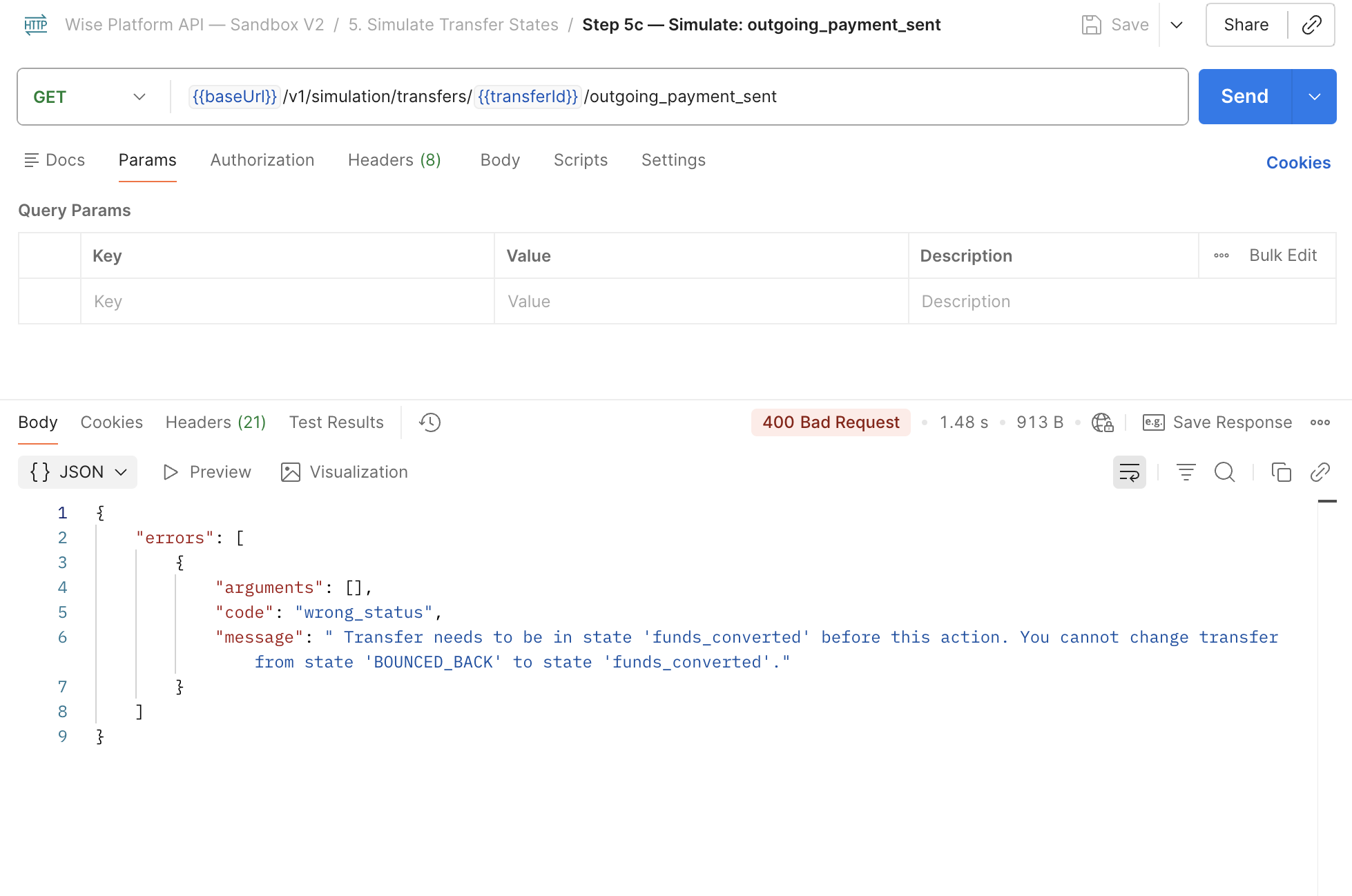

Postman: outgoing_payment_sent blocked

400 Bad Request:

{
  "errors": [
    {
      "code": "wrong_status",
      "message": "Transfer needs to be in state 'funds_converted' before this action. You cannot change transfer from state 'BOUNCED_BACK' to state 'funds_converted'."
    }
  ]
}

It isn’t recoverable. Once a transfer has been auto-advanced to bounced_back, the state machine enforces its ordering just as strictly as it did in the KYC-gated block from earlier in this series – there’s no going back to simulate the happy-path continuation from here. The only way forward is down the unhappy path.

Following the unhappy path to a refund

GET /v1/simulation/transfers/2147799796/funds_refunded

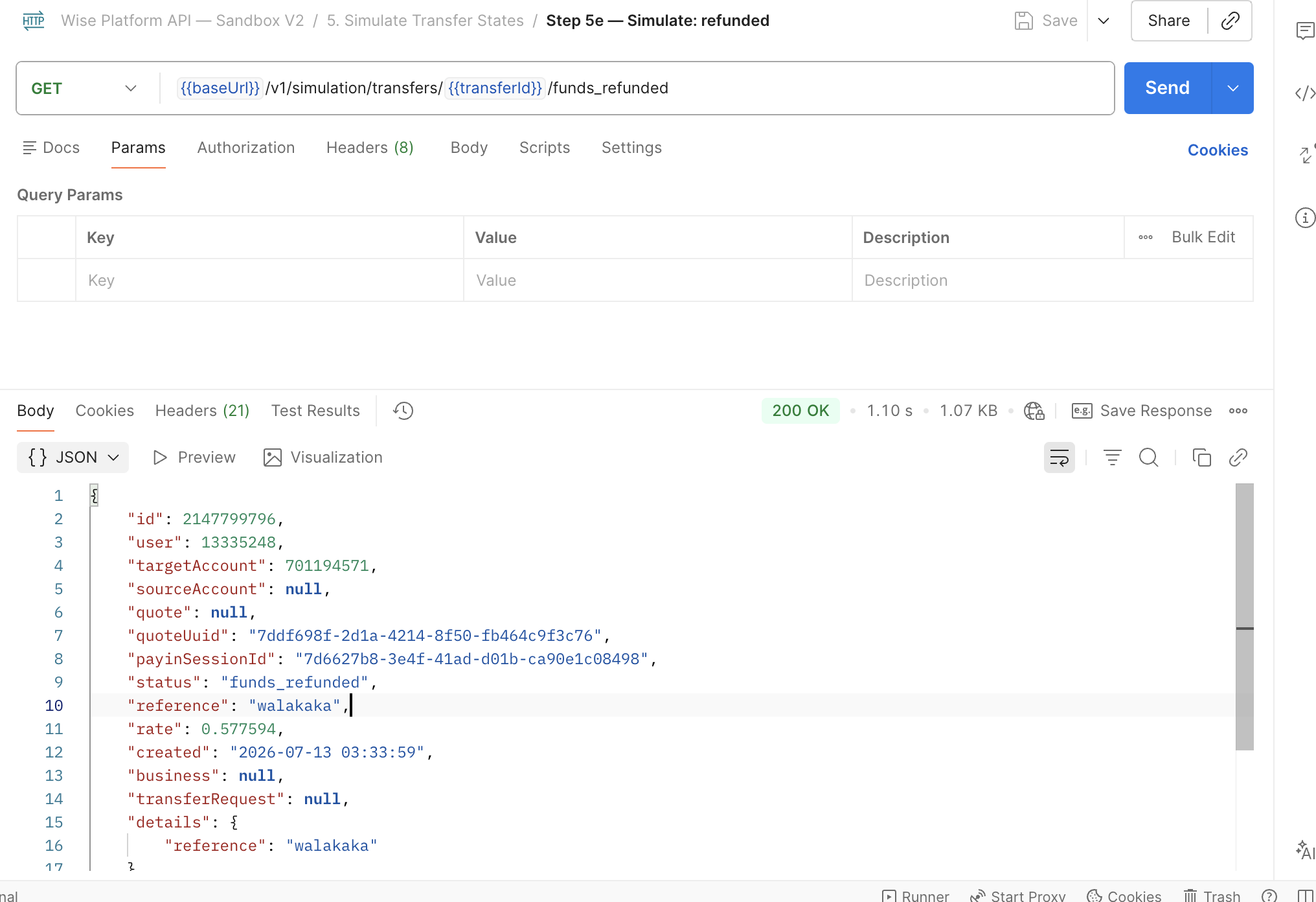

Postman: simulate funds_refunded

{
  "id": 2147799796,
  "status": "funds_refunded",
  "rate": 0.577594,
  "sourceCurrency": "SGD",
  "sourceValue": 191.75,
  "targetCurrency": "GBP",
  "targetValue": 110.75
}

The sandbox UI reflects this as a cancellation, not a distinct “refunded” label:

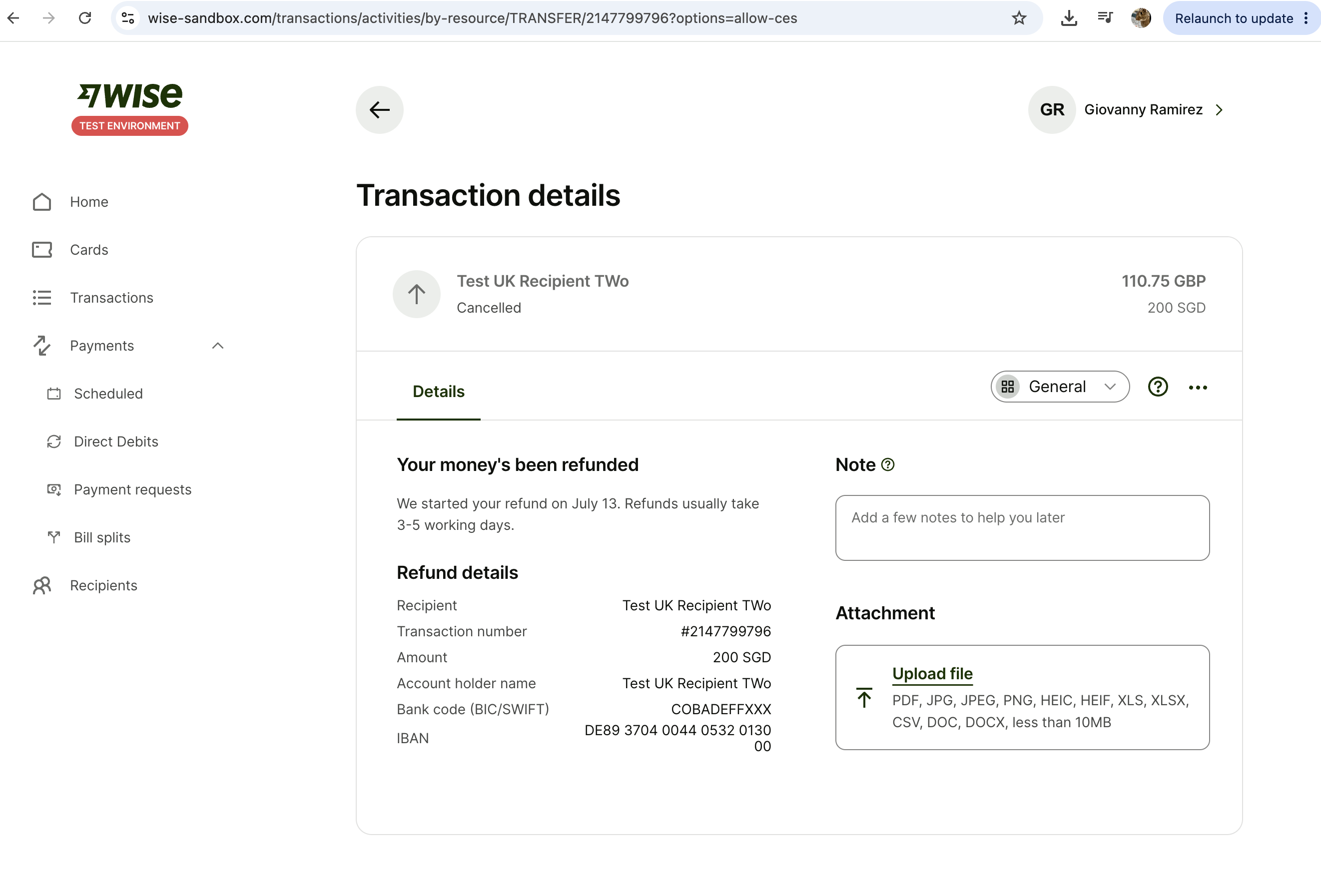

Sandbox UI: refunded/cancelled

Status: Cancelled – “Your money’s been refunded. We started your refund on July 13. Refunds usually take 3-5 working days.”

This is the same UI-label-vs-API-status gap I flagged in the earlier reconciliation post, just on the unhappy path this time: the API’s terminal state is funds_refunded, but nothing in the UI ever displays that string. A partner support engineer reading raw API state would say “refunded”; a customer reading the UI would say “cancelled.” Both are describing the same event.

Webhook evidence

The webhook subscription (configured too late to catch the funds_converted → bounced_back jump, but in time for the next one) captured the final transition cleanly:

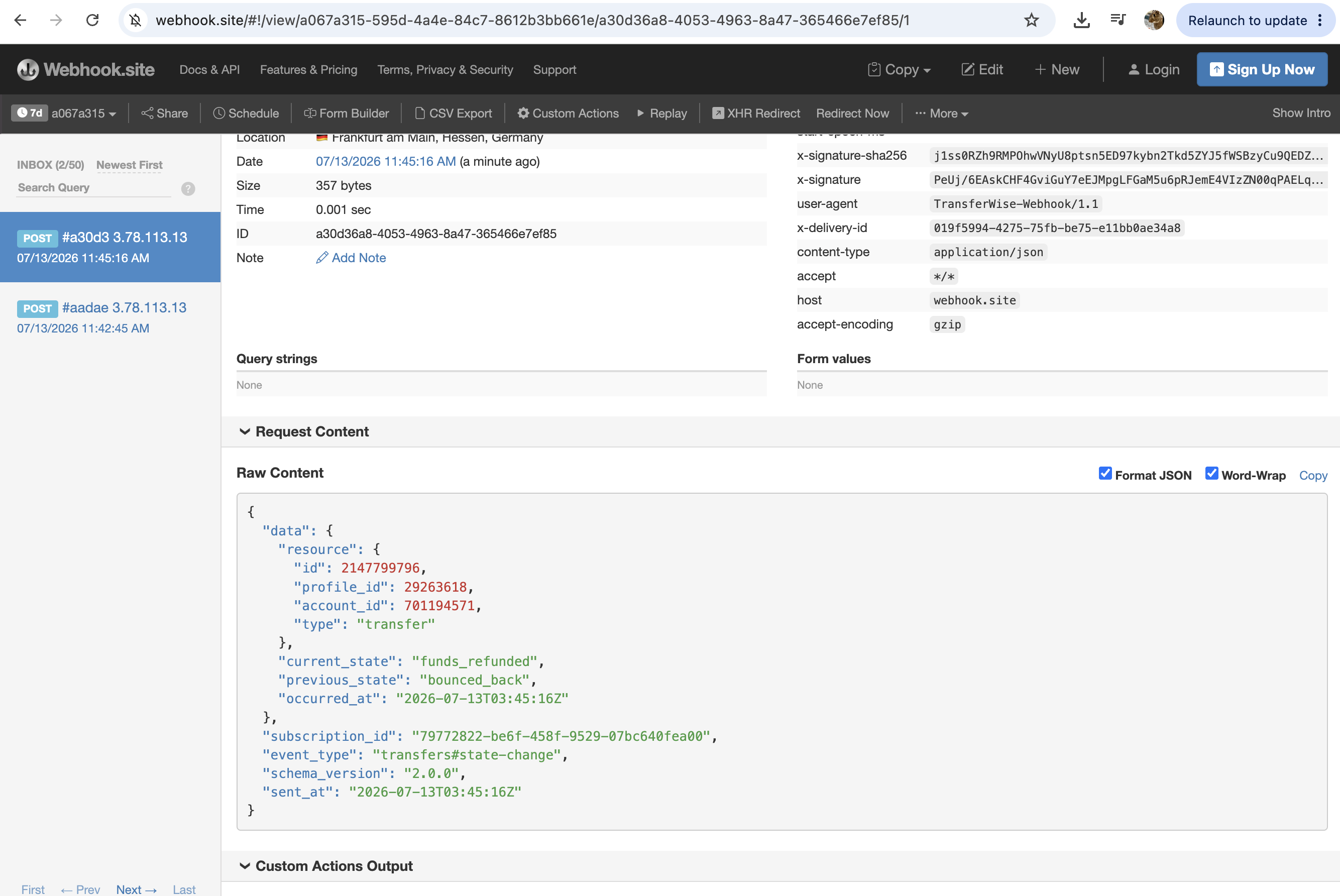

Webhook.site: funds_refunded event received

{
  "data": {
    "resource": {
      "id": 2147799796,
      "profile_id": 29263618,
      "account_id": 701194571,
      "type": "transfer"
    },
    "current_state": "funds_refunded",
    "previous_state": "bounced_back",
    "occurred_at": "2026-07-13T03:45:16Z"
  },
  "event_type": "transfers#state-change",
  "schema_version": "2.0.0",
  "sent_at": "2026-07-13T03:45:16Z"
}

previous_state/current_state give an unambiguous transition record, and sent_at matches occurred_at exactly here – no delay, no ordering issue, unlike the deliberately-broken sample payload I picked apart in an earlier post.

Full state transition map

stateDiagram-v2
    [*] --> incoming_payment_waiting : POST /v1/transfers
    incoming_payment_waiting --> processing : Funded via sandbox UI +\nGET .../simulation/.../processing
    processing --> funds_converted : GET .../simulation/.../funds_converted
    funds_converted --> bounced_back : Sandbox auto-advance\n(no explicit call observed)
    bounced_back --> funds_refunded : GET .../simulation/.../funds_refunded
    funds_refunded --> [*]

    funds_converted --> outgoing_payment_sent : documented happy path\n(not reached in this run)
    outgoing_payment_sent --> [*]

    note right of bounced_back
        Attempting outgoing_payment_sent
        from here returns 400 wrong_status
    end note

UI vs. API field comparison

Transfer state API status UI label UI description
Transfer created incoming_payment_waiting Waiting for you to pay “Ready to pay? Next, send your money to our SGD account.”
Funded, awaiting conversion processing Sending “You have a guaranteed rate of 1 SGD = 0.5776 GBP.”
Currency converted funds_converted Sending Same label as processing – UI doesn’t distinguish these two
Payment returned bounced_back (not shown directly) Sandbox auto-triggered, no UI copy for this state specifically
Refund issued funds_refunded Cancelled “Your money’s been refunded. We started your refund on July 13.”

Amount progression across states

State sourceValue targetValue rate
incoming_payment_waiting 191.60 SGD 110.67 GBP 0.577594
processing 191.75 SGD 110.75 GBP 0.577594
funds_converted 191.75 SGD 110.75 GBP 0.577594
bounced_back 191.75 SGD 110.75 GBP 0.577594
funds_refunded 191.75 SGD 110.75 GBP 0.577594

The rate never moved once – 0.577594 end to end, across five distinct states and both a happy-path segment and an unhappy-path segment. Only sourceValue/targetValue shifted, and only once, between the estimated fee at creation and the confirmed fee at funding.

Key findings

# Finding
1 V2 sandbox’s /payments endpoint returns 403 – funding requires the sandbox UI, not a documented API call
2 /processing advances the transfer and it stays there; no auto-advance immediately follows
3 /funds_converted must be called explicitly to move past processing
4 Undocumented: the sandbox auto-advances a transfer from funds_converted to bounced_back on its own, with no explicit trigger observed on my end
5 The state machine is strict even for this auto-triggered state – outgoing_payment_sent from bounced_back returns 400 wrong_status, same enforcement as every other illegal transition in this series
6 Rate held constant across all five states, happy and unhappy path alike
7 sourceValue/targetValue shift once, from estimate to confirmed fee, matching the pattern (if not the scale) of the earlier fee discrepancy
8 Webhooks fire correctly with matched previous_state/current_state and consistent sent_at/occurred_at ordering
9 The UI’s “Cancelled” label maps to the API’s funds_refunded terminal state – there’s no UI string that says “refunded”
10 UI shows identical “Sending” copy for both processing and funds_converted – indistinguishable to an end user, distinct at the API level

Closing thoughts

I went into this expecting to finally reach outgoing_payment_sent and close out the happy path cleanly. Instead the sandbox made the decision for me, and the more interesting result came from following that detour rather than fighting it. That’s a useful lesson on its own: when a test environment does something you didn’t ask for, the right move is usually to document what happened, not to just retry until you get the result you originally wanted. The “surprise” here – an auto-advance to bounced_back with zero documentation backing it – is exactly the kind of edge case that’s cheap to find by testing and expensive to discover for the first time in production.

Until next time, peace and love!
